Product family

Packing shims

Packing shims for inserting beneath loads and millimetre-accurate levelling: six standard sizes, breakable 300 × 80 mm shims and adjusting blocks. The colour indicates the thickness.

View all variants Downloads

What does it do?

Transfer loads and level heights to the millimetre. Several shims can be combined to reach the required thickness.

Where is it used?

Timber construction and carpentry, window construction, interior fit-out, photovoltaics and solar, façade construction.

How is it installed?

Combine shims to the required thickness and place them under the support. Breakable shims can be snapped to the required length. Adjusting blocks have studs that disappear under pressure, and they are stackable.

Why sustainable?

Fibres from sunflower seed husks replace up to 35% of the petroleum-based plastic. Made in Germany.

Variants & formats

Prices and delivery times can be found in the online shop.

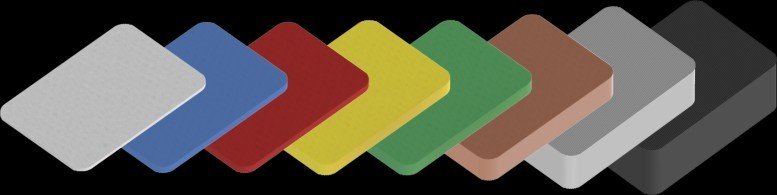

Packing shims 60 × 40 mm

The smallest size, in eight thicknesses from 1.5 to 20 mm.

Thickness	Colour	Contents	EAN
1.5 mm	white	1,000 / carton	4260413042806
2 mm	blue	1,000 / carton	4260413042813
3 mm	red	1,000 / carton	4260413042820
4 mm	yellow	1,000 / carton	4260413042837
5 mm	green	1,000 / carton	4260413042844
10 mm	brown	500 / carton	4260413042851
15 mm	grey	500 / carton	4260413042868
20 mm	black	250 / carton	4260413042875

Assortments in bags

MIX300 ULP300 pcs: 40 each of 1.5 / 2 / 3 / 4 / 5 / 10 / 15 mm and 20 × 20 mmEAN 4260413043179

Packing shims 70 × 70 mm

Square, with a central hole for easy fixing.

Thickness	Colour	Contents	EAN
2 mm	red	250 / carton	4260413040925
3 mm	green	250 / carton	4260413040932
4 mm	yellow	250 / carton	4260413043131
5 mm	blue	250 / carton	4260413040949
6 mm	brown	250 / carton	4260413043148
10 mm	white	250 / carton	4260413040918
15 mm	black	250 / carton	4260413043315
20 mm	black	250 / carton	4260413042370

Assortments in bags

Mini 50Packing shims 70 x 70 mm, 50 pcs assortedEAN 4260413043414
Mid 100100 pcs, 5 thicknessesEAN 4260413043421
Mix 200200 pcs, 5 thicknessesEAN 4260413043438

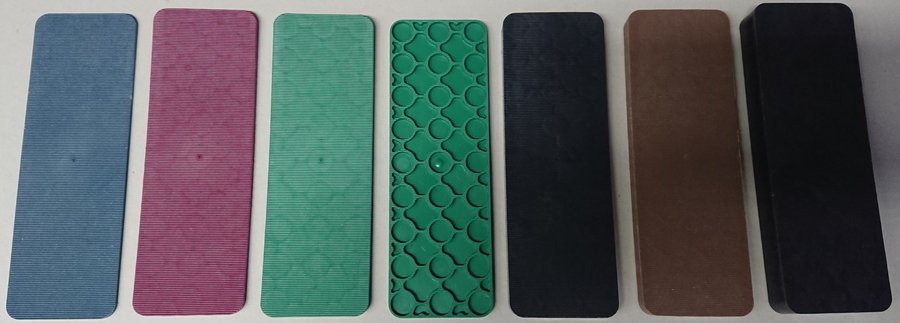

Packing shims 100 × 60 mm

Medium size for wider supports.

Thickness	Colour	Contents	EAN
2 mm	blue	500 / carton	4260413043209
3 mm	red	500 / carton	4260413043216
5 mm	green	500 / carton	4260413043223
10 mm	brown	250 / carton	4260413043230
15 mm	grey	250 / carton	4260413043247

Assortments in bags

UP Mix 100Packing shim assortment, 100 mm, 110 pcs assortedEAN 4260413043469

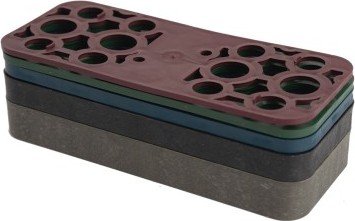

Packing shims 120 × 50 mm

Long size, e.g. for timber construction and substructures.

Thickness	Colour	Contents	EAN
2 mm	red	250 / carton	4260413040833
3 mm	green	250 / carton	4260413040840
5 mm	blue	250 / carton	4260413040857
10 mm	black	100 / carton	4260413040819
15 mm	grey	100 / carton	4260413040826

Assortments in bags

UPMix 120110 pcs: 25 × 2, 25 × 3, 25 × 5, 20 × 10, 15 × 15 mmEAN 4260413043445

Packing shims 160 × 50 mm

Extra long for continuous supports.

Thickness	Colour	Contents	EAN
2 mm	red	250 / carton	4260413040888
3 mm	green	250 / carton	4260413040895
5 mm	blue	250 / carton	4260413040901
10 mm	black	100 / carton	4260413040864
15 mm	grey	100 / carton	4260413040871

Assortments in bags

UPMix 16080 pcs: 20 × 2, 20 × 3, 20 × 5, 10 × 10, 10 × 15 mmEAN 4260413043452

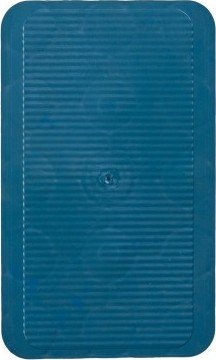

Packing shims 180 × 60 mm

The large size for wide, long supports.

Thickness	Colour	Contents	EAN
2 mm	blue	250 / carton	4260413043252
3 mm	red	250 / carton	4260413043261
5 mm	green	250 / carton	4260413043278
10 mm	brown	100 / carton	4260413043285
15 mm	grey	100 / carton	4260413043292
20 mm	black	100 / carton	4260413043308

Assortments in bags

UP Mix 180Packing shim assortment, 180 mm, 75 pcs assortedEAN 4260413043773

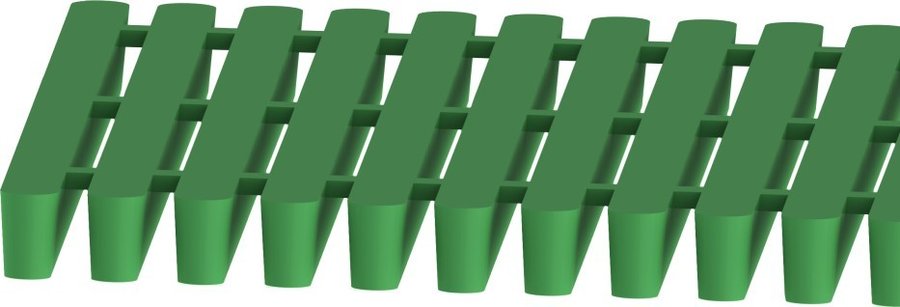

Breakable packing shims (variable length) 300 × 80 mm

Can be snapped to the required length.

Thickness	Colour	Contents	EAN
2 mm	blue	200 / carton	4260413040987
3 mm	red	200 / carton	4260413040994
4 mm	yellow	150 / carton	4260413041007
5 mm	green	120 / carton	4260413041014
6 mm	black	100 / carton	4260413041021
10 mm	grey	50 / carton	4260413040963

Assortments in bags

Mix 4444 pcs: 13 × 2, 10 × 3, 8 × 4, 5 × 5, 3 × 6, 5 × 10 mmEAN 4260413042387
Mix 5858 pcs: 13 × 2, 10 × 3, 10 × 4, 10 × 5, 10 × 6, 5 × 10 mmEAN 4260413040628

Adjusting blocks 80 × 50 mm

With studs that disappear under pressure. Stackable, e.g. for photovoltaics and construction.

Thickness	Colour	Contents	EAN
2 mm	red	500 / carton	4260413040109
3 mm	green	500 / carton	4260413040116
5 mm	blue	500 / carton	4260413040123
7 mm	brown	500 / carton	4260413040130
10 mm	black	500 / carton	4260413040147
15 mm	yellow	250 / carton	4260413040154
20 mm	black	250 / carton	4260413040161

Assortments in bags

Mini 4040 pcs, 7 thicknessesEAN 4260413043384
Mid 8080 pcs, 7 thicknessesEAN 4260413040451
Mix 155155 pcs, 7 thicknessesEAN 4260413043407

Downloads

Can't find the right size?

We offer tradespeople and dealers personal advice, including on custom sizes and larger quantities.
